3 Cabins, 2 Heads
Single skin hull, hand-laid fiberglass, ISO gelcoat surface, protective “barrier coat”
Infused fiberglass inner liner, easy access to grounding frame, relamination in stays attachment areas.
Prisma Process injected deck, ISO gelcoat surface, discontinuous balsa block coring – 30% weight savings as compared to traditional decks.
Twin rudders with self-aligning roller bearings and textile lines, to increase control and pleasure in navigation.
One-level interior with no door sills
Large doors, double door to access the forward cabin.
Leather-wrapped handrails
LED lighting
Large, rectangular double berths
Fully-upholstered hull sides
Blinds for each hatch and opening in the forward and aft cabins.
Large seaworthy storage spaces, seaworthy with fiddles, soft closing drawers and cabinets.
Shower dividers in head
Full-size mirrors in the owner’s cabin and in the heads.
Woodwork in Alpi Teak
UV Stabilized varnish
Asymmetrical cockpit with dedicated area for dinning, lounging and maneuvering.
Walk-in access to side decks, enabling to walk around the deck without crossing any steps.
Multi-function cockpit table
Leather-covered stainless steel wheels
Large electric aft fold-won swim platform with telescopic ladder
Hinged companionway doors.
Easy circulation thanks to the inclined side decks
Flush deck hatches
Long tinted acrylic roof windows
Split rigging, Inboard shrouds for easier access forward
External woodwork and inlays
Mid-ship cleats
GRP Bowsprit with integrated anchor roller
Second windlass control with chain counter, installed in cockpit
Halyard bags in cockpit with stainless stee frames
LED courtesy lighting in the cockpit
Protective GRP eyebrow for the long acrylic deck windows
Electric windlass
KEEL-STEPPED, ANODISED ALUMINIUM IN-MAST FURLING MAST, FRACTIONAL
RIG built by Sparcraft
TRIPLE, SWEPT BACK SPREADER DESIGN
MASTHEAD with 2 aft sheaves for main halyard and boom topping lift and 2 spinnaker sheaves forward
LED 360° ANCHOR LIGHT
1 FORWARD SHEAVE for genoa halyard
1 FORWARD SHEAVE for inner staysail
COMBINATION STEAMING AND DECK LIGHT
FLAG HALYARD padeyes under first set of spreaders
ANODISED ALUMINIUM BOOM for in-mast furling with outhaul sheave and roller-bearing car on track
MAST-MOUNTED WINCH for tensioning halyards – size 50
HALYARD TENSIONNER TRACKS for halyards of the furling sails
RIGID VANG with control line lead aft to the cockpit
WATERTIGHT THROUGH DECK FITTING with Harken mast base blocks
STANDING RIGGING is discontinuous Dyform wire rigging
RUNNING RIGGING
• Sheets and halyards in ultra low-stretch Dyneema
• Additional lines in low-stretch polyester
ELECTRIC GENOA FURLER with control at helm station__
High aspect ration rig, cathedral mast and split rigging
Harken genoa tracks
Harken roof port winch and primary winches all electric – starboard Harken roof winch.
Anodized aluminum mast and boom.
Boom with rigid boom vang and lowered gooseneck, to ease maneuvering.
Semi-batten mainsail and 120% furling genoa with UV protection.
Discontinous standing rigging, stainless steel wire
Lazy bag and lazy jacks
Sheets lead back to the helm – German sheeting
Common Rail engine with reduced emission and consumption
Yanmar Engine 4JH57CR Shaft Drive – 57hp / 42kw – Alternator 125Ah
Engine panel oriented toward helmsman, located on the cockpit table. Throttle at helm station.
Insulation: Foam 40mm / 1 12 thick with fire retardant film
Built-in muffler, air ventilation and stainless steel exhaust fitting
Fixed 3 bladed propeller
Ventilation system extractor fan located near the engine, benefiting from the insulation of the engine room. Outlets vents a the back of cockpit
Roto molded fuel tank 53 gals located under the aft cabin berth, Fuel / water separator
Access behind steps to engine compartment and from aft cabins.
Quick retractable bow thruster with a dedicated 12 V battery bank

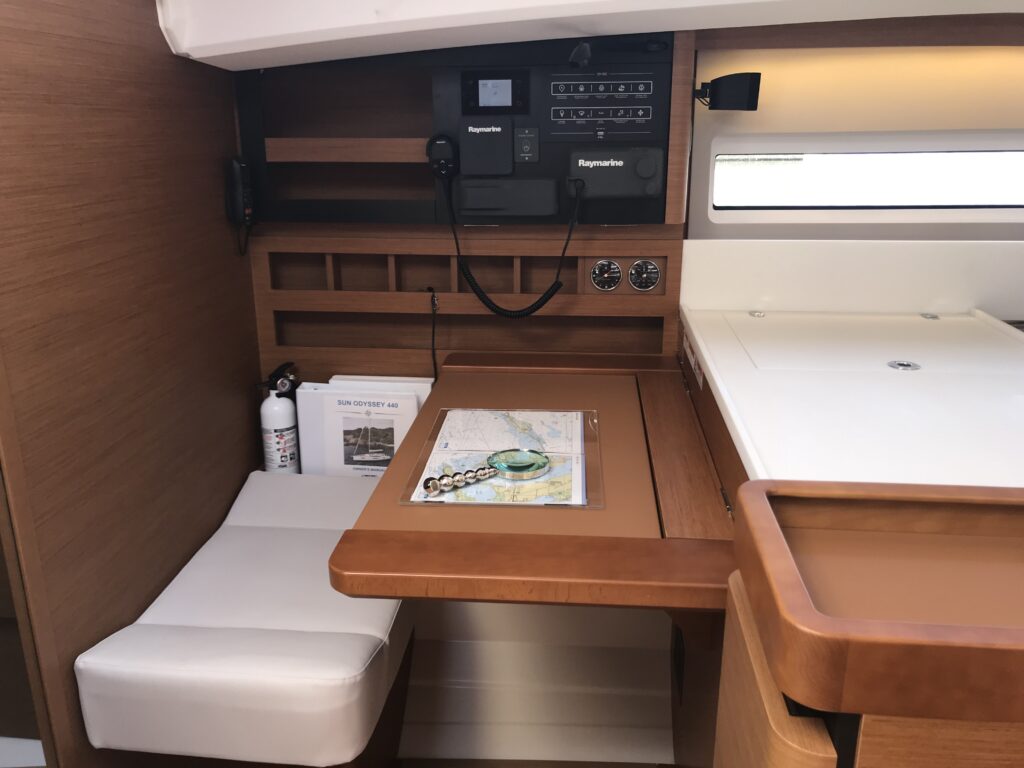

Large navigation desk with leatherette lining and interior storage for a lap top, electrical panel and book storage.
Bose Lifestyle 600 5.1 with Bluetooth
Blueray Player
2 Bose® surround sound speakers in the saloon
1 Bose® base unit
2 waterproof BOSE exterior speakers located in the cockpit
3 Flat-panel smart TV’s
TV antenna

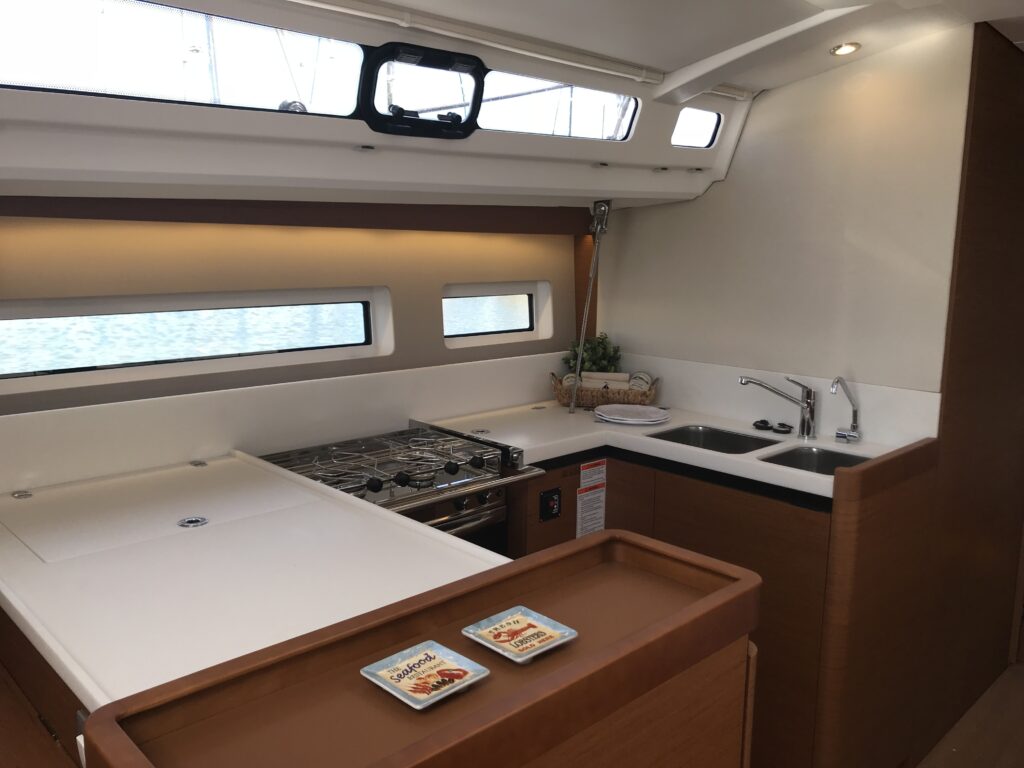

U-shaped galley, ideally located near the center of gravity of the boat
Corian countertops
Double stainless steel sinks
2 Burner stove with oven
Fridge 34 gals with front access
DEEP, COMFORTABLE SOFA to port with view of sea through hull ports
LOCKERS ABOVE SEATING
HINGED STORAGE COMPARTMENTS under settee seating
INDIRECT AND OVERHEAD LIGHTING WITH DIMMER SWITCHES
2 LARGE, FIXED HULL PORTS with aviation shades
SALOON

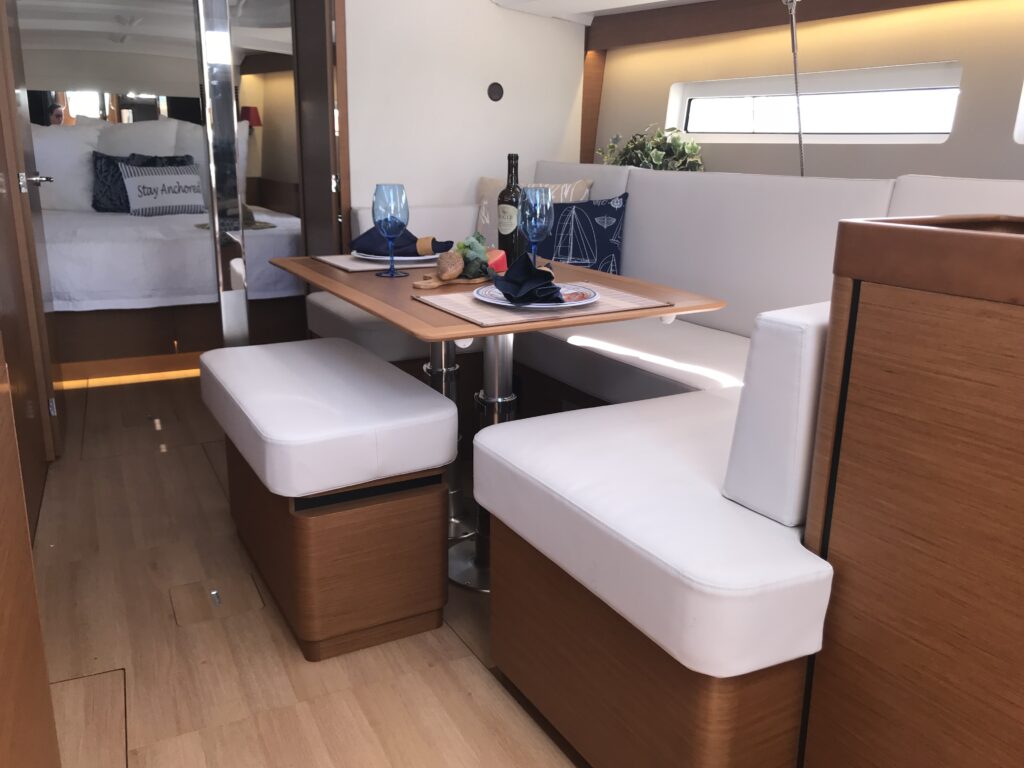

COMFORTABLE SEATING ARRANGEMENT to starboard for 8 with view of sea though hull ports
LOCKERS ABOVE SEATING
HINGED STORAGE COMPARTMENTS under settee seating
LARGE SALOON TABLE
WINE CELLAR
2 FOLDING ARMCHAIRS
PNEUMATICALLY-ASSISTED HINGED CENTRAL FLOORBOARDS provide access to water systems, bilge sump and generator compartment
COURTESY LIGHTING under steps to forward cabin and galley, as well as other steps throughout the boat
INDIRECT AND OVERHEAD LIGHTING WITH DIMMER SWITCHES
2 LARGE, FIXED HULL PORTS with aviation shades
4 OPENING FLUSH HATCHES in saloon with pleated shade and insect screen integrated into ceiling panels
STAINLESS STEEL HANDRAILS with leather wrap to each side of steps
ALUMINIUM / WOODEN STEPS with non-skid strips
ENGINE ACCESS behind steps
INDIRECT LIGHTING under each step
MAIN ELECTRICAL PANEL behind smoked Perspex door to starboard of companionway

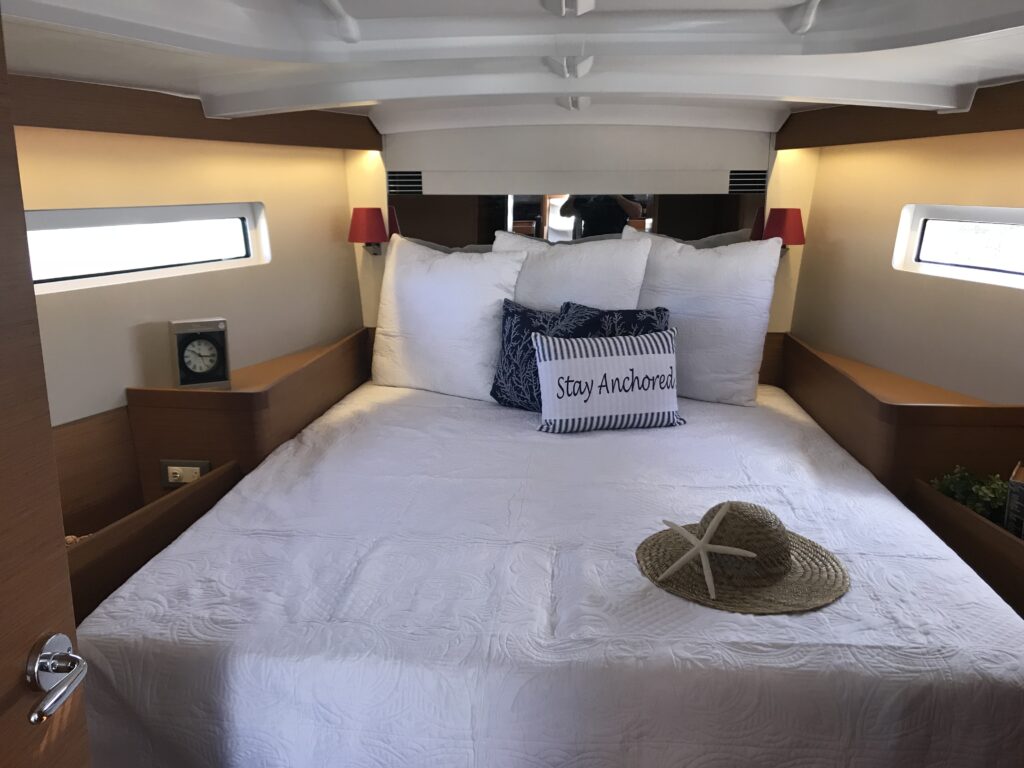

DOUBLE BERTH with innerspring mattress (205 cm x 180 cm / 6’8” x 5’10”)
LARGE, DOUBLE HANGING LOCKER with interior courtesy lighting and 6 storage drawers in lower unit
AN OFFICE/VANITY AREA to port with leatherette desktop and storage area and swing-out stool
COMFORTABLE SOFA to starboard
NIGHT STANDS to each side of the berth with storage drawers and upper bookshelves
INDIRECT LIGHTING under side decks to each side with dimmer switches
2 FIXED HULL PORTS with aviation shades
2 LARGE, CURVED OPENING PORTS into cockpit for ventilation and evacuation with pleated shades and insect screens
ELECTRONIC SAFE
AFT ACCESS DOOR INTO ENGINE ROOM from en-suite shower
Cabinet with solid Teak sink and Corian® countertop
Lacquered upper storage lockers
Opening port into cockpit provide ventilation
LED overhead lighting and task lighting
Standing shower separated by a Perspex door and Corian® shower floor
Electric, fresh-water flush toilet
Mirror
Clothes hook
Towel bar
DOUBLE BERTH with innerspring mattress (205 cm x 180 cm / 6’8” x 5’10”)
LARGE, DOUBLE HANGING LOCKER with interior courtesy lighting and 6 storage drawers in lower unit
AN OFFICE / VANITY AREA with leatherette desktop and storage area
COMFORTABLE SOFA
PNEUMATICALLY-ASSISTED OPENING STORAGE CABINETS under side deck
STORAGE CABINET with drawers at forward end of the cabin
COMBINATION LED LAMPS / READING LIGHTS to each side of the berth
NIGHT STANDS to each side of the berth
INDIRECT LIGHTING under upper storage Cabinets
2 FIXED HULL PORTS with aviation shades
4 LARGE OPENING DECK HATCHES for light and ventilation with pleated shades and insect screens
2 LARGE STORAGE DRAWERS under berth
Cabinet with solid Teak sink and Corian® countertop
Lacquered upper storage lockers
2 large deck hatches provide light and ventilation with pleated shade and insect screen
LED overhead lighting and task lighting
Standing shower separated by a Perspex door and Corian® shower floor
Electric, fresh-water flush toilet
Mirror
Clothes hook
Towel bar
FRESH WATER
FRESH WATER SYSTEM with high-pressure twin 24 V pumps (36 L / min / 9.5 US gal / min), inline filter and accumulator tank
RAINMAN 115V high output water maker
SEA WATER AND FRESH WATER FOOT PUMP in the galley
SHORE WATER CONNECTION in cockpit with water pressure regulator
3 ROTO MOULDED WATER TANKS 2 x 400 L / 106 US gal tanks and 1 x 200 L / 53 US gal tank with separate fills and vents
TANK MANIFOLD with selector valves located under saloon floor
TANK LEVEL GAUGES integrated into 3.5” digital display panel at companionway
80 L / 21 US GAL HOT WATER HEATER connected to engine heat exchanger and 230 V / 115 V electrical system
HOT AND COLD WATER SHOWER at the transom in the garage
SINK in galley console in the cockpit with cold water tap
GREY WATER
COLLECTOR SYSTEM at each head compartment centralizes sink and shower grey water for overboard discharge. This reduces the number of through hulls
WASTE WATER
3 ELECTICAL MARINE TOILETS with fresh water flush
3 ROTO MOULDED HOLDING TANKS 88 L / 23 US Gal located under floor in forward and aft section with overboard macerator pump and level gauges integrated into 3.5” display panel at companionway
NON-SMELL WHITE PVC HOSING
BILGE DRAINAGE
EACH BILGE PUMP HAS SEPARATE HOSING from sump to through-hull
LIFE RAFT Winslow Super-Light Offshore plus 8 person life raft.
STARLINK – Flat High Performance – engineered by Space X, Starlink’s Flat High Performance Kit is designed to deliver high-speed, low latency internet while in motion. the Flat high Performance kit features a wide field of view and enhanced GPS capabilities to ensure consistent connectivity on the go.
CURVED ESCAPE HATCHES are located in the aft cabin(s) and allow the evacuation of aft cabins without passing engine or galley spaces
13 ESCAPE HATCHES throughout the interior
NOVEC™ AUTOMATIC ENGINE ROOM FIRE-EXTINGUISH SYSTEM with release handles located under galley steps
EMERGENCY TILLER fitting easily accessible due to the twin-helm / single rudder design
FOLDING PADEYES in cockpit and along side deck for safety harnesses
MANUAL BILGE PUMP with located at helm station with hosing separate from electric bilge pumps
EMERGENCY LADDER located on transom aides in the rapid recovery of a man overboard
FOG HORN AND HAILER
RECEIVES CATEGORY A “unlimited ocean” rating by the European Community (CE)
