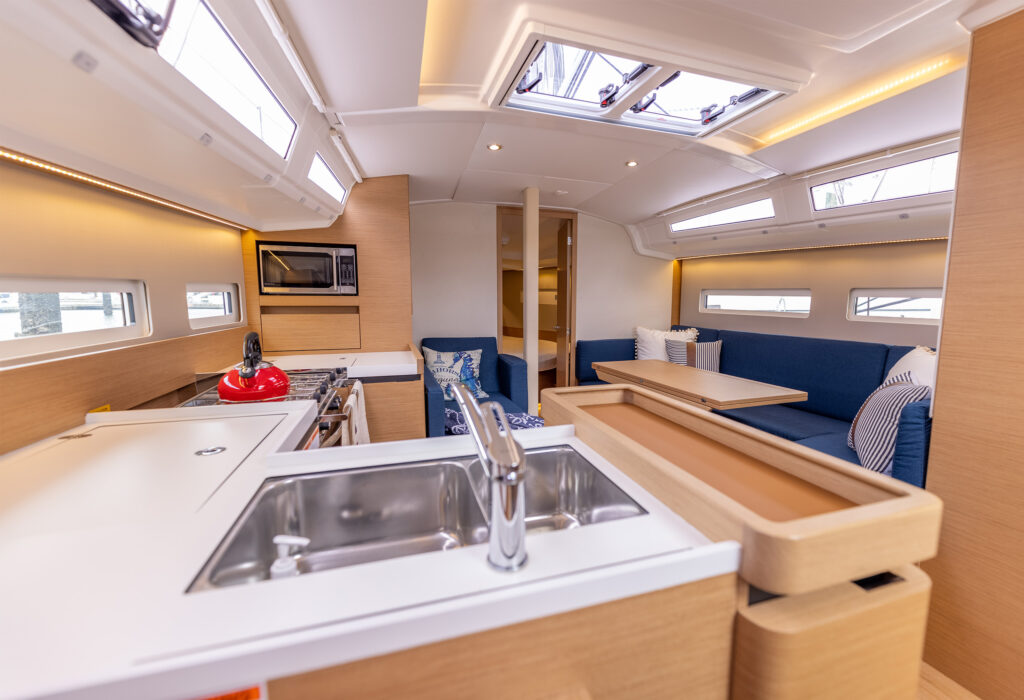

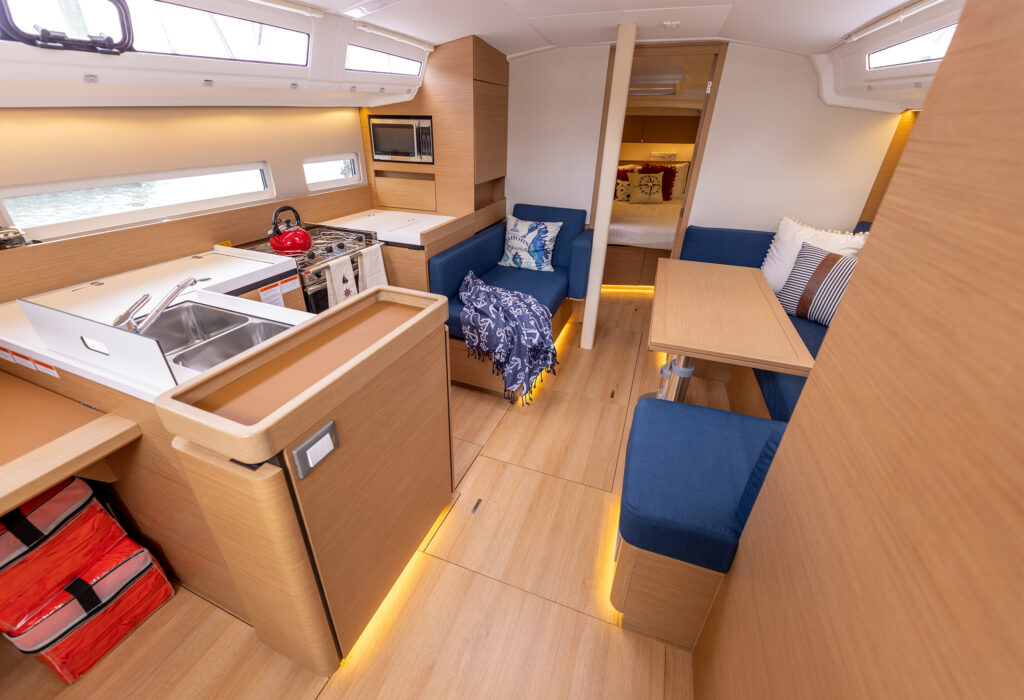

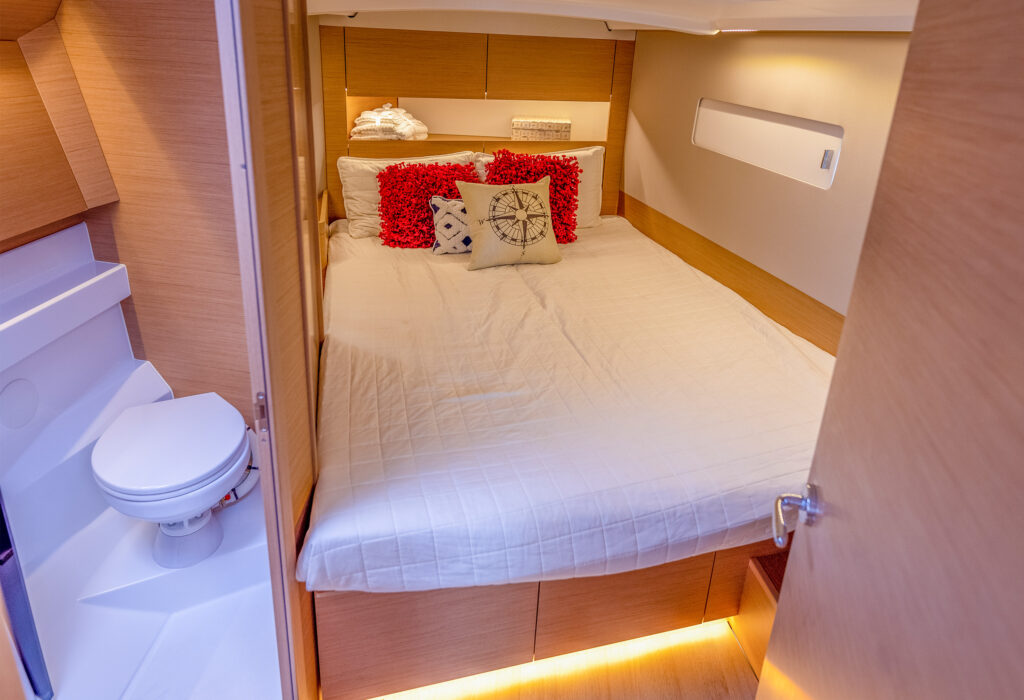

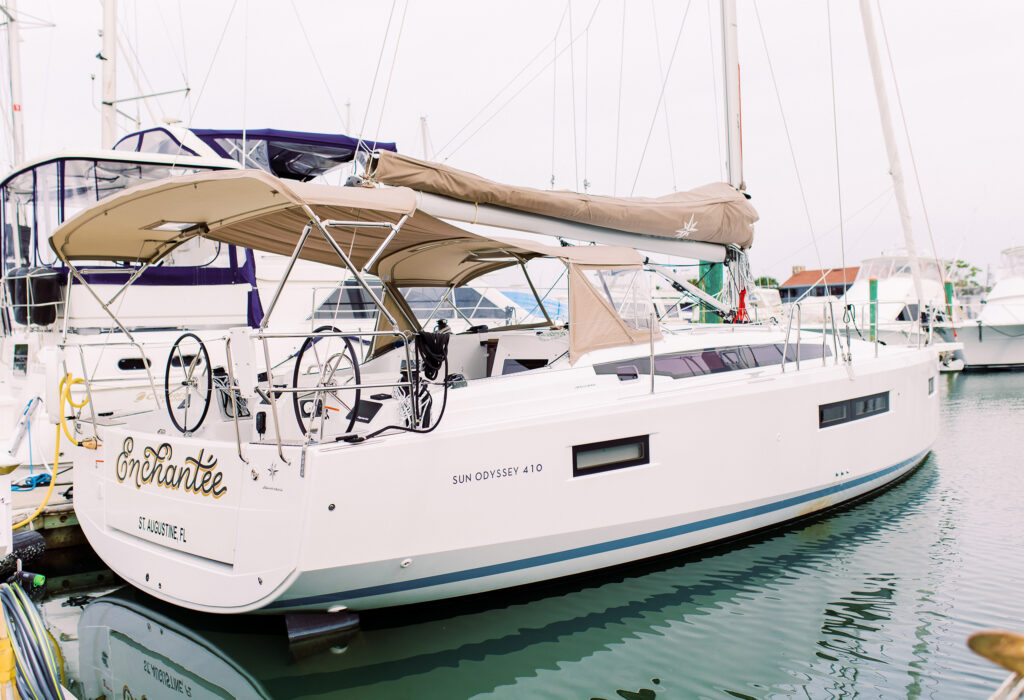

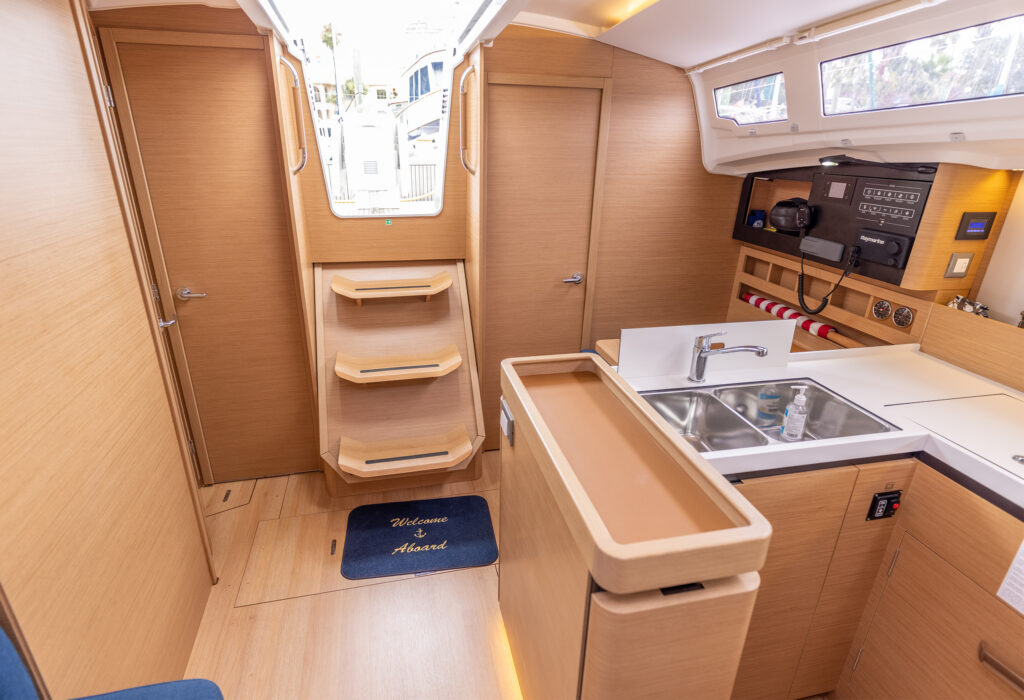

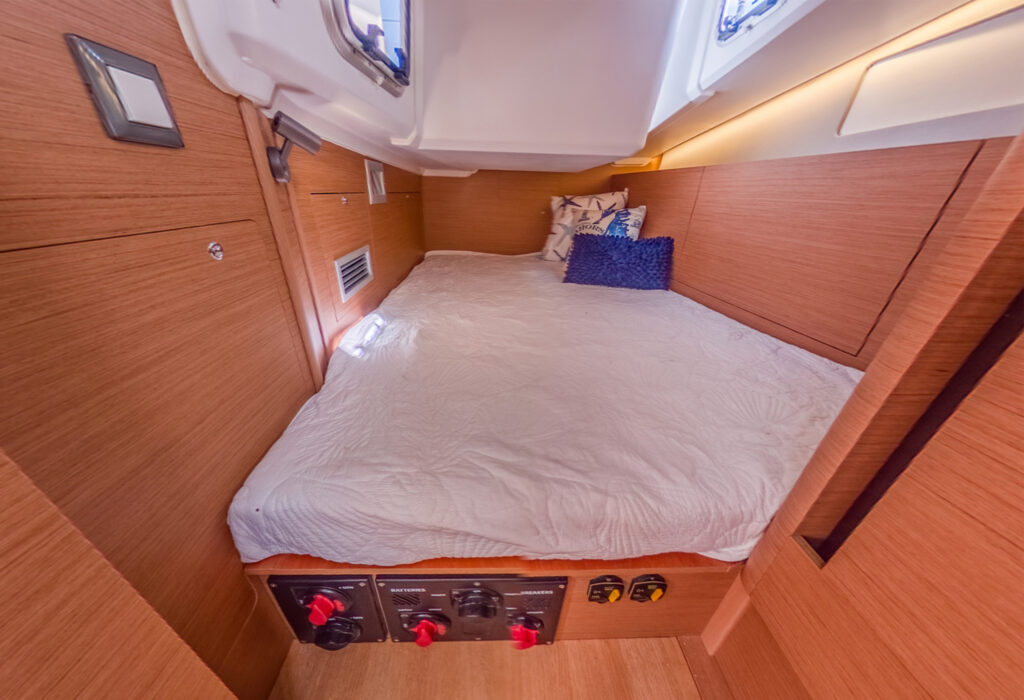

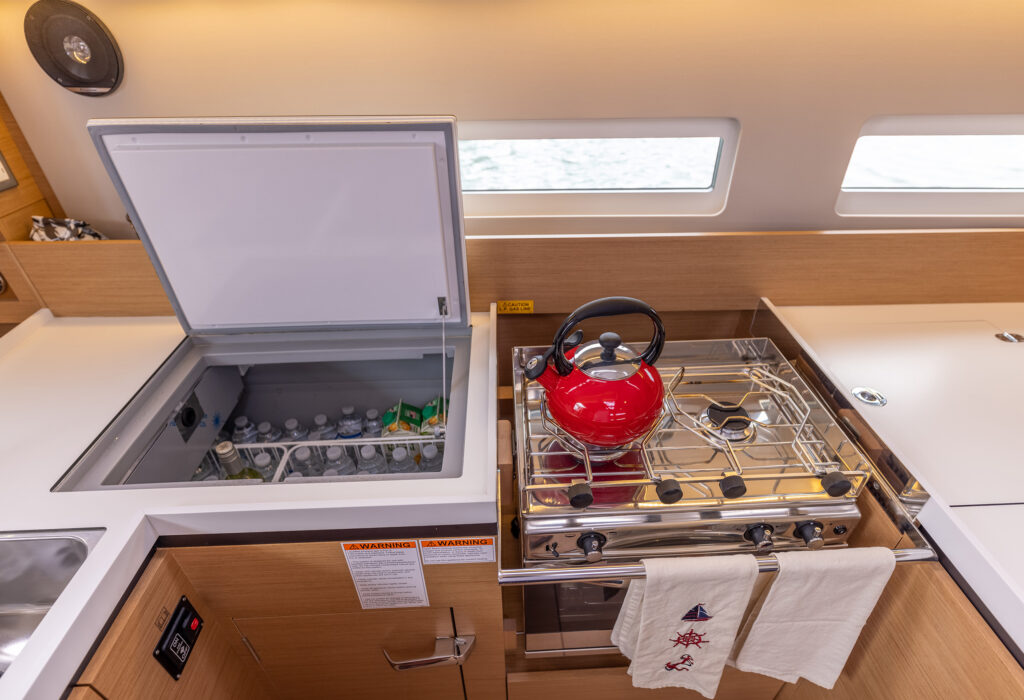

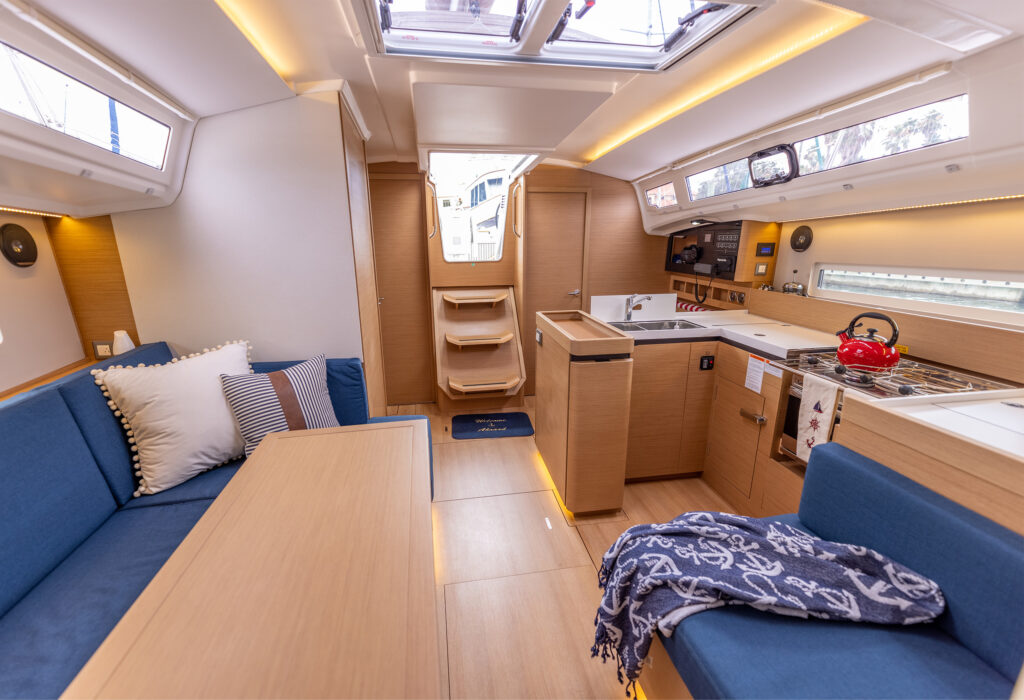

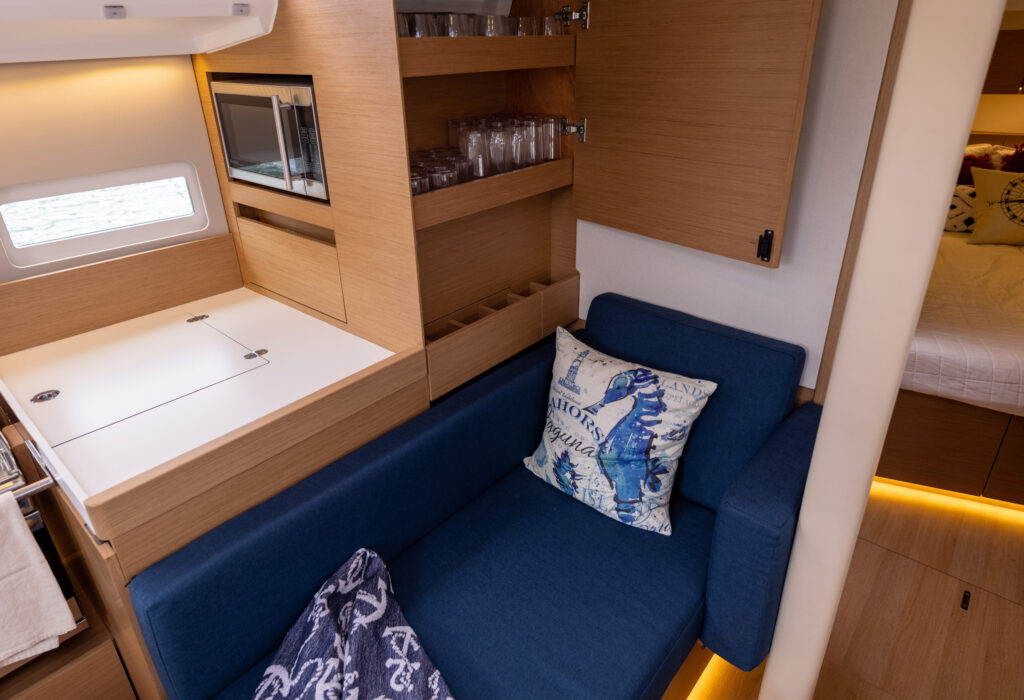

The Jeanneau 410 is perfect for no matter what kind of sailing you enjoy – from day sailing to cruising with the family. Enchantee is a 3 Cabin / 2 head layout with the upgraded grey cedar interior and ocean blue upholstery. The large rectangular “Queen” size berth in the forward owner’s cabin with ensuite is both spacious and comfortable. The U-shaped galley mid-ship with stove/oven, microwave, and large refrigerator makes cooking a pleasure.
Isophtalic NG gelcoats used to ensure bright and lasting finish. Polyester resins used throughout. Each batch of resin and gelcoat receives laboratory testing before use. Finite element analysis was performed in high-load areas during the engineering process.
Vacuum infused with discontinuous, end-grain balsa. Solid laminate in keel area. Barrier coat used to guard against osmosis.
3rd Generation counter-molded structure glued and laminated to hull for strength. High-load zones cut-out for access to the hull. Subflooring in saloon area framed with aluminum.
HULL PORTS in acrylic, bonded from exterior
COMPOSITE BULKHEADS are vacuum infused and fully laminated 360 degrees
BILGE AREAS finished with a gelcoat paint
DECK is vacuum infused with discontinuous, end-grain balsa. Wood coring used in high-load areas. Proprietary and highly-effective non-skid pattern is molded into side decks and coachroof
WINGED SHOAL KEEL – epoxy encapsulated cast iron 5′ 2′
FULLY BALANCED SPADE RUDDER uses stainless steel cables driven by sprockets in the steering consoles.
JEFA, AUTO-ALIGNING BEARINGS
The highest quality components, sourced from the leading suppliers, make up the standard deck equipment. Harken and Spinock equipment is used extensively. Exterior wood used in cockpit and on side decks is Teak.
FIXED STEMHEAD FITTING in 316 stainless steel with anchor roller
ATTACHMENT POINT for Code 0 or asymmetrical spinnaker on bow
ANCHOR WINDLASS 3
ANCHOR LOCKER with double access hatches from the deck and location for manual handle and bitter end attachment point
OPEN BOW PULPIT in 316 stainless steel
DOUBLE LIFELINES in stainless steel Dyform wire, 75 cm / 30” high
LIFELINE GATES located just aft of midships to either side
DECK-EDGE BULWARK in GRP runs from stem to stern
MOORING CLEATS in alumium
RUB SRAKES in 316 stainless steel below each cleat location
MAST COLLAR (keel-stepped mast) in anodised aluminium
MAIN CHAINPLATES in 316 stainless steel at deck edge
LARGE, FLUSH DECK HATCH
FLUSH DECK HATCHES in foredeck
FLUSH-MOUNTED DECK HATCHES on coachroof in main saloon
FOLDING PADEYES on deck and deck edge
STERN PUSHPIT in 316 stainless steel with fold- down ladder for access to transom and swim platform.
FITTING FOR FLAG STAFF
FAIRLEADS ON TRANSOM
MASTHEAD with 2 aft sheaves for main halyard and boom topping lift and 1 spinnaker sheaves forward
LED 360° ANCHOR LIGHT
1 FORWARD SHEAVE for genoa halyard
COMBINATION STEAMING AND DECK LIGHT
RIGID VANG with control line lead aft to the cockpit
WATERTIGHT THROUGH DECK FITTING with Harken mast base blocks
STANDING RIGGING is discontinuous Dyform wire rigging
• Sheets and halyards in ultra low-stretch Dyneema
• Additional lines in low-stretch polyester

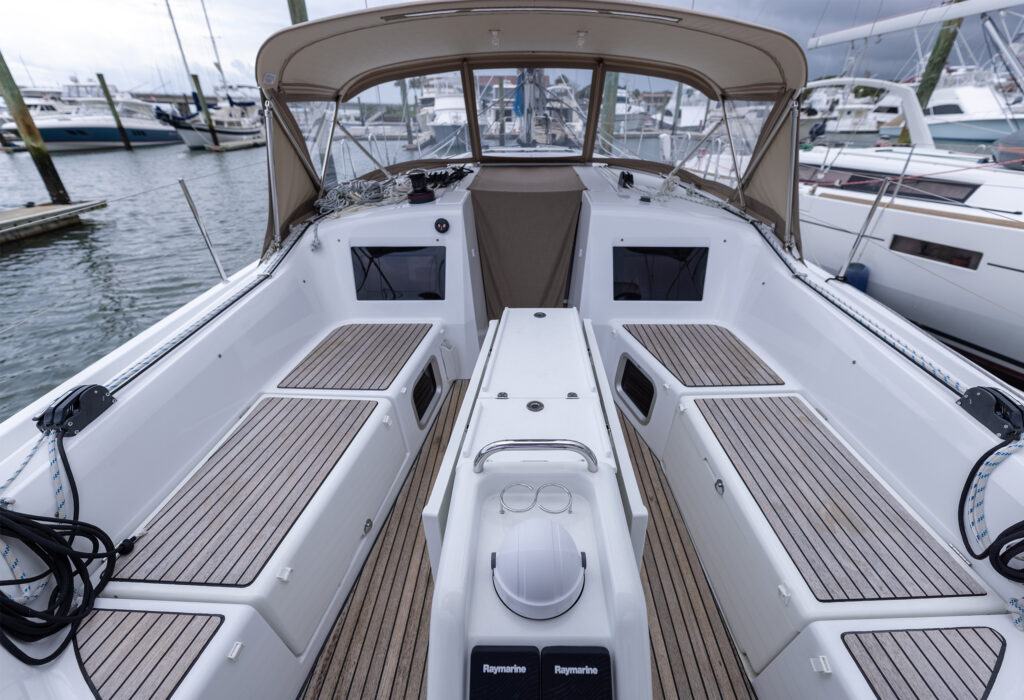

While onboard, 80 % of the time is spent in the cockpit and, for this reason, particular attention was paid to the ergonomics of this vital area. It is a space to relax, play and
enjoy every moment on the water. The size and comfort of the cockpit is truly unique. All seating, flooring, steps and swim platform are covered with inset Teak battens and black caulking.
The cockpit is divided into 3 parts:
1) LOUNGING / DINING AREA protected by coachroof and optional sprayhood with seating for 10 people around 2 large cockpit tables with electric leg for both starboard and port tables.
2) STEERING AREA with twin helm consoles, winches and engine controls
3) AFT SUNDECKS for lounging and access to stern lockers, garage and swim platform
2 TEAK COCKPIT TABLES with electric legs for both starboard and port tables.
SECOND COMPANIONWAY provides access to aft owners or crew cabin via a curved, opening hatch at the aft end of the port side seating area
OPENING, CURVED HATCH into aft cabin at the aft end of the starboard side seating area

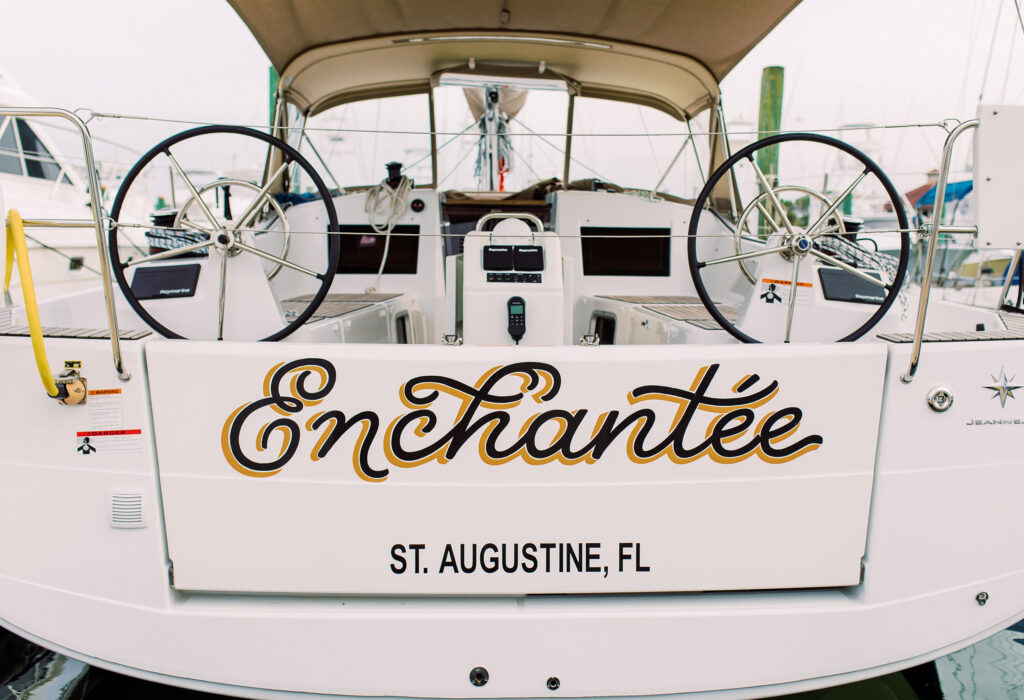

2 COMPOSITE STEERING CONSOLES each:
SECOND WINDLASS CONTROL WITH CHAIN COUNTER

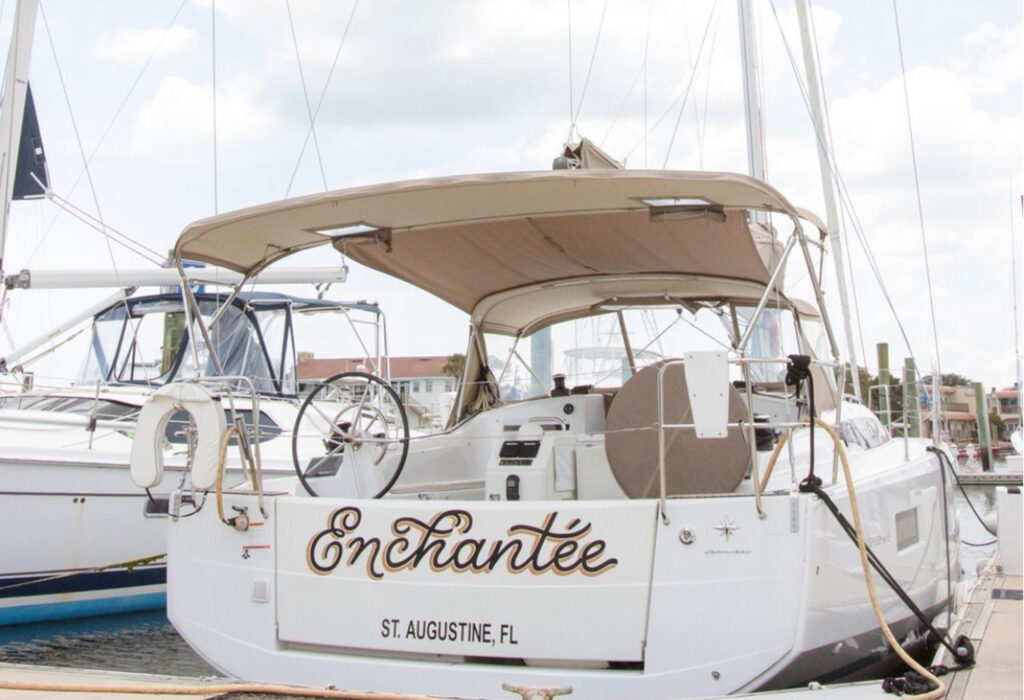

CUSTOM BIMINI and DODGER
HELM SEATS with Teak battens
GAS LOCKER under helm seats for 2 gas bottles 27 cm / 10 5/8” in diameter and 45 cm / 17 11/16” high
AFT SUNDECKS provides a space to relax and offers the helmsman a comfortable seat behind the wheel
1 LARGE LIFERAFT LOCKER with pneumatically-assisted opening located on the centerline under the cockpit floor
LIFERAFT – Winslow Super-Light Offshore Plus 8-person.
ACCESS TO THE GARAGE AND COCKPIT STORAGE with pneumatically-assisted opening located under aft sundecks
LARGE FOLD DOWN SWIM PLATFORM provides easy access to the water. Integrated telescopic ladder
STORAGE GARAGE FOR TENDER opens electrically and contains:
2 BACKSTAY CHAINPLATES in stainless steel 316 on both sides of the stern
INLETS FOR SHORE POWER CABLES under starboard helm seat
RECESSED VENTS behind side windows for engine room ventilation, aft head extractor fans and galley extraction fan
LED COURTESY LIGHTING in cockpit
RECESSED STORAGE COMPARTMENTS on coachroof to each side of the companionway
CUSHIONS – Bora Bora Grey
CONSOLES IN COCKPIT
ELECTRIC GRILL located aft starboard under sunbathing deck.
FOG HORN and HAILER
TEAK COCKPIT AND SIDE DECKS_
MAIN ELECTRIC PANEL

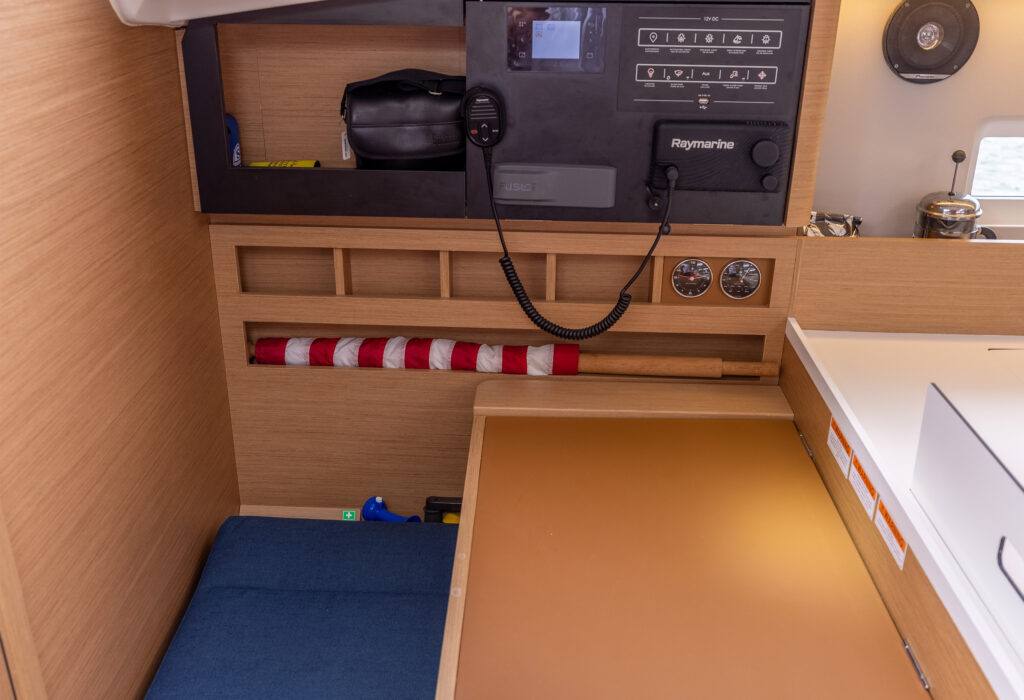

USB PLUGS at chart table for recharging mobile devices
LED INTERIOR LIGHTING
