2019 Jeanneau 490 – 2 Cabins / 2 Heads / Workshop – Teak Interior

Shoal Draft 5′ 4″

ARCHITECTURE

• Full-length hull chine for improved stability and speed
• Long waterline for better speed while sailing and under power
• L-shaped cast iron keel less exposed to seaweed and lines
• Twin rudders with self-aligning roller bearings and textile lines, to increase control and pleasure in navigation

• Yanmar – 80 hp with SD 60 Sail Drive
• Alternator 125 Ah
• Engine panel oriented toward helmsman, located on the cockpit table
• Throttle at helm station
• Insulation: Foam 40 mm, with fire retardant fil
• Built-in muffler, air ventilation and stainless steel exhaust fitting
• fixed 3 propeller
• Ventilation system extractor fan located near the engine, benefiting from the insulation of the engine room.  Outlets vents at the back of cockpit
• Roto molded Fuel tank 63 US gals located under the aft cabin berth
• Extra Fuel tank 63 gals located under the floor in workshop
• Retractable bow thruster with a dedicated 12v AGM battery bank and charger (New AGM battery)

PREFERENCE PACK INCLUDES:

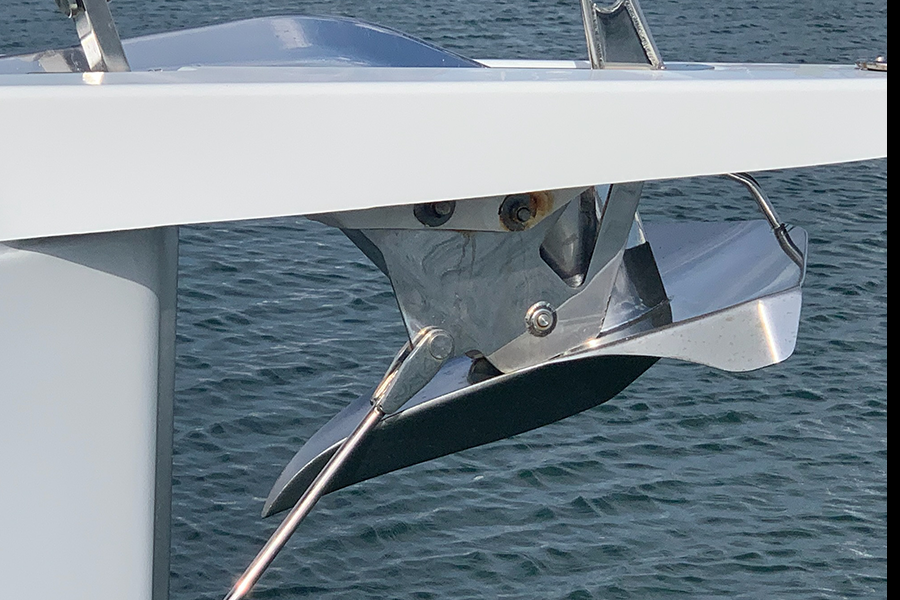

• GRP Bowsprit with integrated stainless steel anchor roller
• Second windlass control with chain counter, installed in the cockpit
• Halyard bags in the cockpit with stainless steel frame (3)
• Pre-wiring 40 Ah battery charger for 12 V battery banks
• 60 Ah Battery charger for 12 V Battery banks
• AGM Batteries
• AGM Battery for Bow Thruster
• USB plugs (7)
• LED Courtesy lighting in the cockpit
• 3 Burner stove with oven
• Protective GRP eyebrow for the long acrylic roof windows
• Navicolor battery monitoring
• Indirect LED lighting, and lamps on bulkhead
• Shades for windows and ports in the salon
• Signature clock and barometer set at the chart table
• Vertical door on fridge
• Separate freezer drawer
• Specific compartment for cutlery in the central galley storage unit
• Wine storage locker under floorboards

UPHOLSTERY

• Ocean

CONVERTIBLE COCKPIT STARBOARD INCLUDES:

• Extending starboard coaming convertible into lounge area
• Starboard infill cushion for L-seating area
• Cushion for starboard cockpit and sunbathing area
• Starboard lifeline’s cushion
• Helmsman seat cushion

CONVERTIBLE COCKPIT PORT INCLUDES:

• Extending Port coaming convertible into lounge area
• Cushion for  Port cockpit and sunbathing area
• Port lifeline’s cushion
• Helmsman seat cushion

MAST AND RIGGING

• ICW Friendly Furling Mast –
• Aluminum with double spreaders
• Decked Stepped
• Cathedral geometry and split rigging
• Boom with rigid boom vang and lowered gooseneck, to ease maneuvering
• German sheeting – sheets lead back to the helm
• Double backstay
• Genoa Furler with double slot, furling line lead aft to cockpit on coachroof
• Running rigging topping lift, mainsail halyard, genoa halyard, mainsheet, genoa sheets in polyester
• Standing rigging discontinuous 1 x 19 stainless steel wire
• Releasable forestay for small jib or storm sail
• Spinnaker rigging with Spinlock jammers
• Halyards and sheet for asymmetrical spinnaker / Code 0 (2 polyester halyards, 1 sheet and 1 tack line in Dyneema, pulleys on mast step and side decks)

SAILS

• In mast furling main sail horizontally-cut in high strength polyester

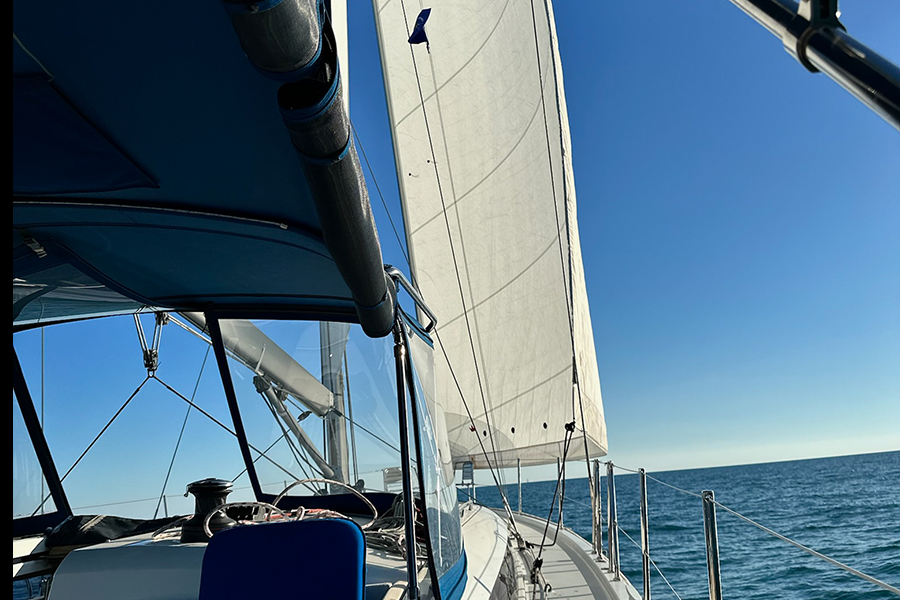

• 120% Furler genoa with UV protection

SAIL HANDLING

• Mainsheet attached to Dyneema bridle forward of companionway, with sheets led back to the cockpit winches
• Harken genoa tracks with adjustable lead cars
• Spinlock jammers

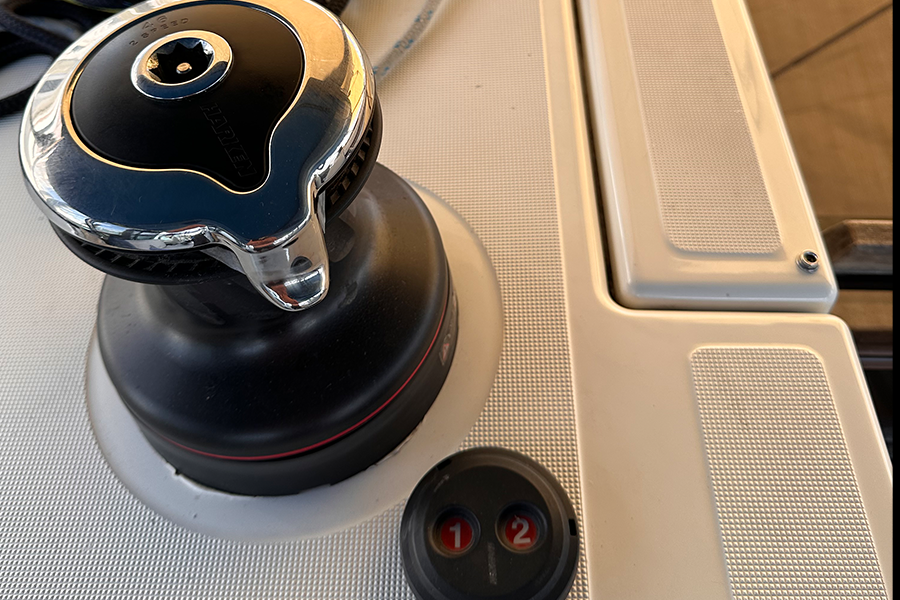

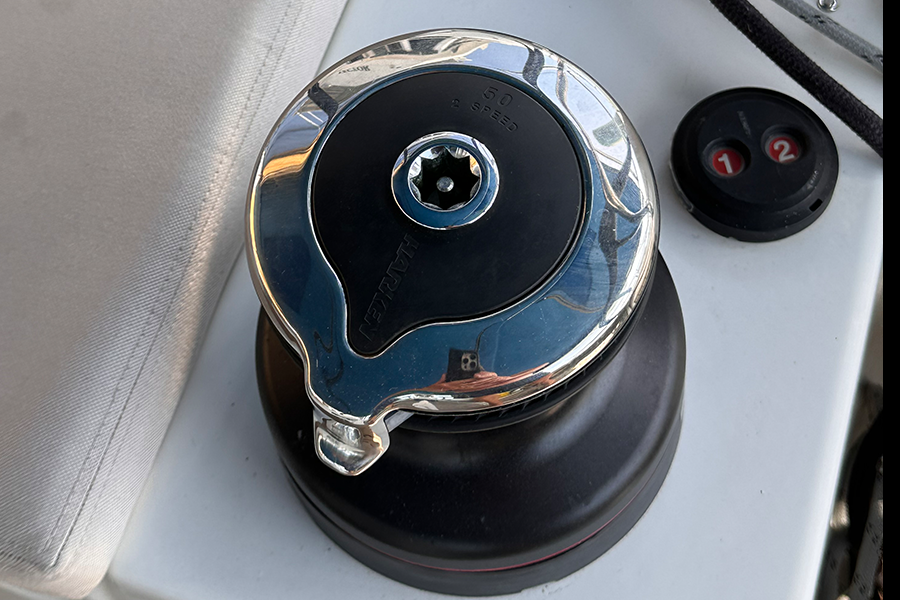

• 1 Electric Harken  Coachtop Winch to Port + 1 Harken ST Winch to starboard
• 2 Electric Harken Genoa winches for easy use at the helm
• Harken winch handle

MOORING KIT INCLUDES

• 6 Fenders
• 4 Mooring lines

ANCHOR INVENTORY INCLUDES

• Large Ultra Marine anchor
• 200′ of 3/8″ chain
• 147′ of 3/4″ line
• Back up X37 Fortress anchor with chain and rod
• 2 Anchor snubbers one for light anchoring and one for storm anchoring

ANCHOR LOCKER

• Electric 12 V Windlass 1000 W  with remote at cockpit with chain counter and forward chain locker control
• Foredeck Fresh or Seawater washdown

SAIL LOCKER

• Large forward sail locker perfect for storing fenders with custom covers

• Walk-in access to side decks, enabling to walk around the deck without crossing any steps

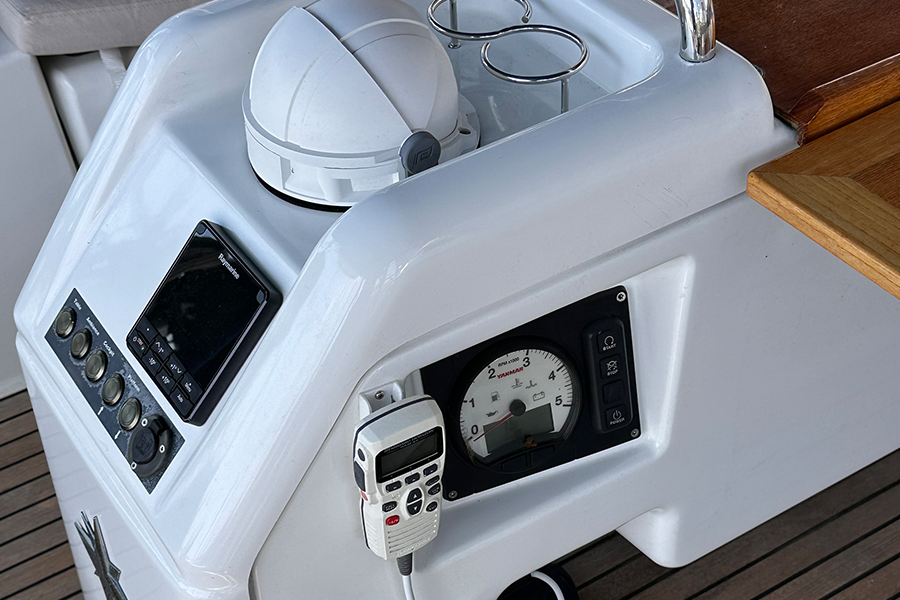

• Large cockpit table with compass, cup holders, area for navigation instrument, cockpit light switch, handrails, LED Lighting, bottle storage
• Wooden inlay on bench seats, helms stations and transom platform
• Convertible Coaming with ideal height for comfort and safety – described in the pack section
• Cockpit lockers
  • 1 on starboard side
  • 1 on port side
  • 1 large locker on the cockpit floor housing the generator (gen described in electric equipment)
  • 1 liferaft locker with open access to transom platform – life raft described in Additional Options
• Universal gas box, cut off valve under the stove
• Wheels with leather wrap
• Stainless steel handrail
• Cup holders
• Emergency tiller and fitting in cockpit floor

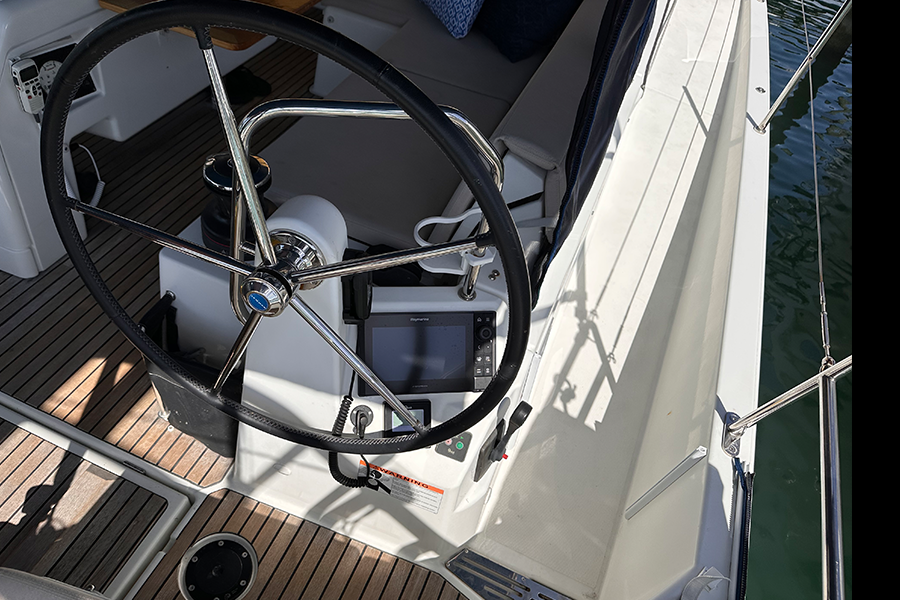

• Engine control throttle lever at starboard helm station and oriented engine panel on the cockpit table

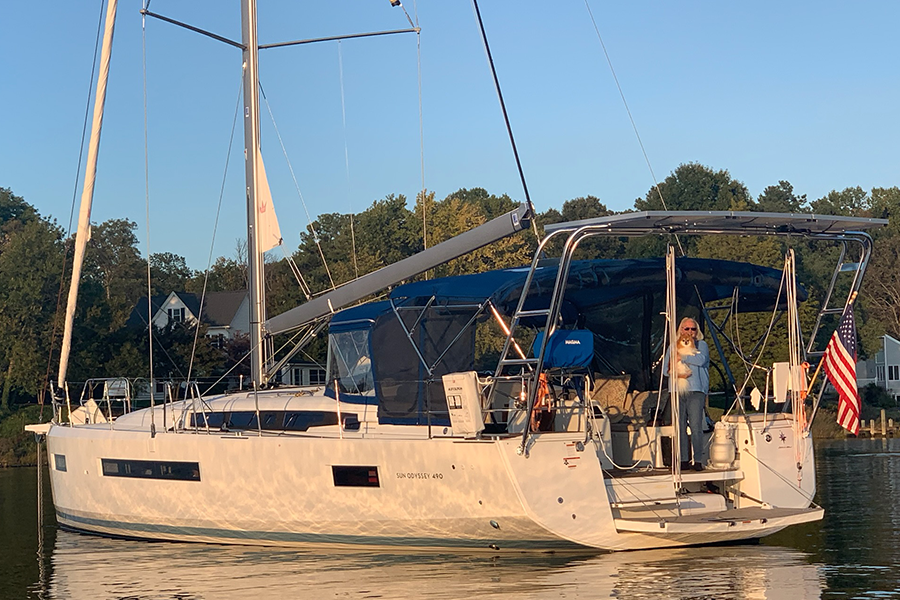

• Electric swim platform with telescopic ladder, handrail and access step to the cockpit.
• Hinged companionway doors in plexiglass
• Sliding horizontal hatch in pleiglass

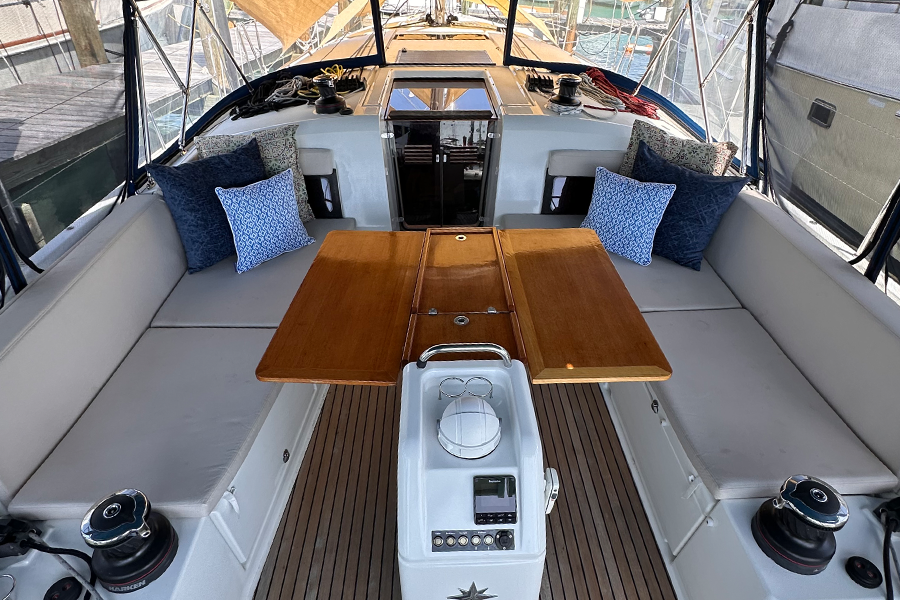

• Cockpit table with wooden leaves and stainless steel handrails

• Large passage way

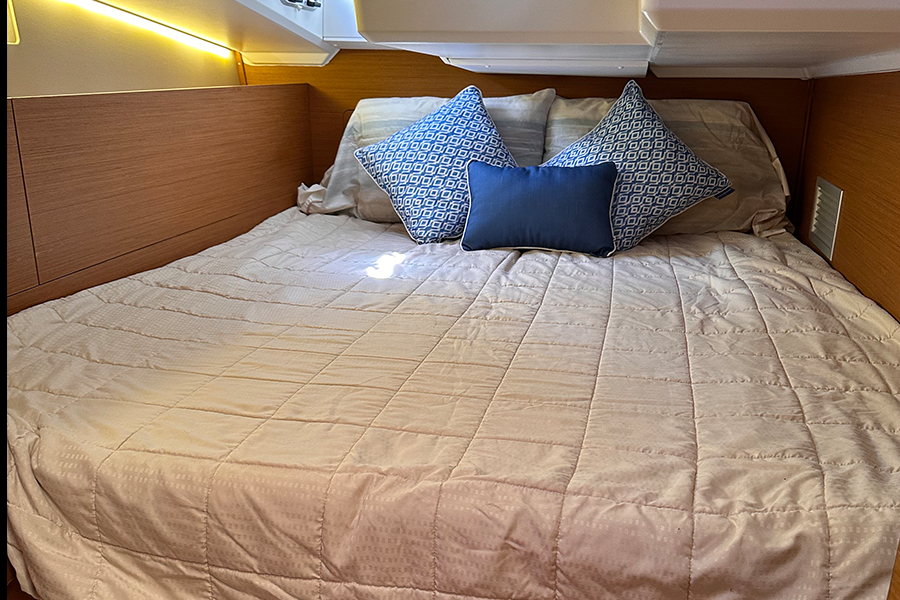

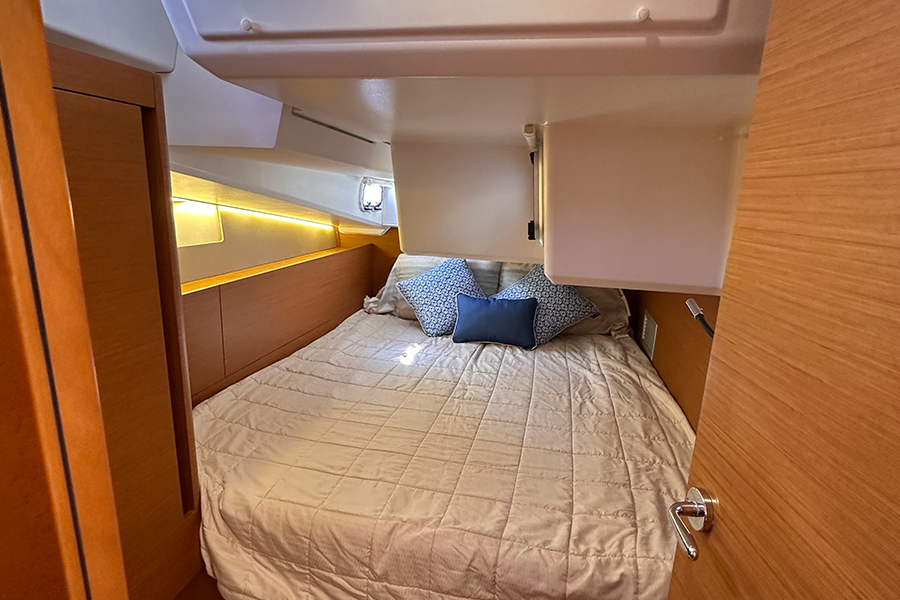

• Large domestic size, rectangular berth (standard queen size)
• Large dressing locker to starboard with hanging locker, full height drawer, opening cabinet and LED lighting
• Large hanging locker to port
• Central book shelve with space for a TV
• Lower locker with drawer, shoes storage and leatherette top finish
• 2 Large drawers underneath the berth
• Side bed tables with leatherette
• Large mirror in front of the cabin
• LED Lighting
• 2 opening deck hatches, for light and ventilation above the bed and 1 in the passageway
• 2 Large fixed hull ports with sliding blinds
• Deck hatches with blinds and bug screens
• Separate toilet compartment to port, with FRP sink furniture, storage, hull port allowing sea view, opening deck hatch, indirect LED lighting, large marine toilet
• En-suite owner’s head compartment, with direct access from the cabin, GRP sink furniture, drawer, opened storage shelves, hull port allowing sea view, opening deck hatch, indirect LED lighting, full height mirror. Separate shower compartment located in the center of the boat for high headroom, with its dedicated opening deck hatch and plexiglass door, shower, shower drain with automatic switch.
